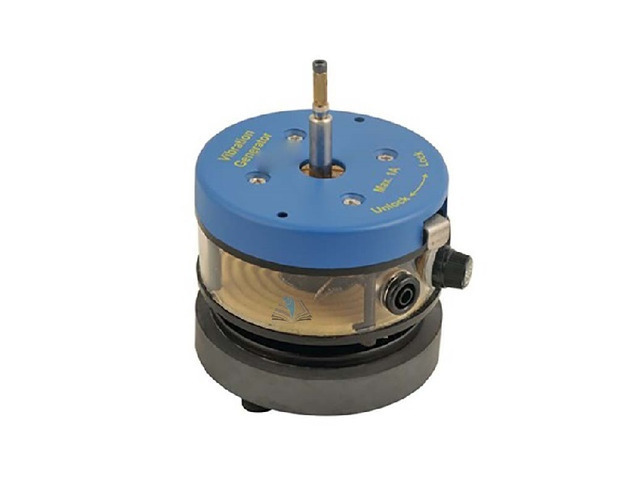

The Vibration Generator gives mechanical oscillations when fed by signals from an oscillator/A.F. amplifier (e.g. a Power Signal Generator).
The frequency response encompasses the whole of the audio spectrum and beyond.
Electrical input is made via two 4mm sockets and the mechanical output is provided by a shaft terminating in a pair of clamping nuts.
The locking slider feature allows the generator arm to be fixed to prevent damage.
The Vibration Generator can be used in any position, free standing or clamped.
Requires the following equipment to operate:
Power Signal Generator
4mm Leads (2 required)
A length of string
It can alternatively be driven using a Bench Signal Generator & Power Amplifier i...
The Vibration Generator gives mechanical oscillations when fed by signals from an oscillator/A.F. amplifier (e.g. a Power Signal Generator).
The frequency response encompasses the whole of the audio spectrum and beyond.
Electrical input is made via two 4mm sockets and the mechanical output is provided by a shaft terminating in a pair of clamping nuts.
The locking slider feature allows the generator arm to be fixed to prevent damage.
The Vibration Generator can be used in any position, free standing or clamped.
Requires the following equipment to operate:
Power Signal Generator
4mm Leads (2 required)
A length of string
It can alternatively be driven using a Bench Signal Generator & Power Amplifier in the absence of a Power Signal Generator.
The Vibration Generator can demonstrate the behaviour of the following:
Transverse Waves
Longitudinal Waves
A Vibration Generator Accessory Kit is available separately and also as a Vibration Generator Kit which includes the Vibration Generator.
The accessory kit contains a multitude of accessories for use with the Vibration Generator to demonstrate transverse, longitudinal, standing and 2-Dimensional waves.
