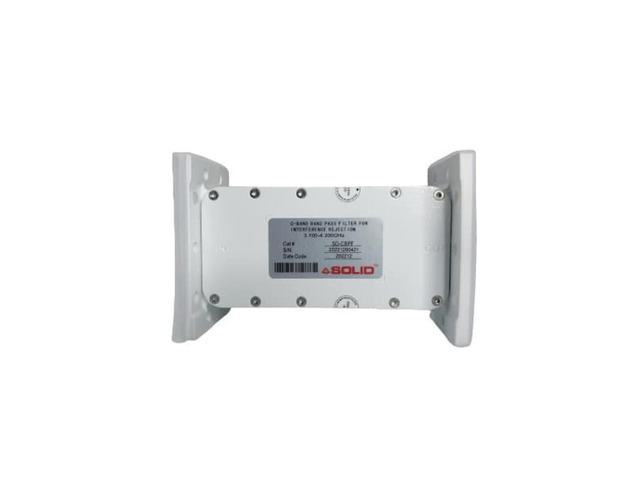

SOLID C-BAND BAND 5G PASS FILTER
• Rejects terrestrial interference in C-Band (5G, Telecom Radar, and C-Band transmitter)
• Easily installed between the feed and LNB
• Suitable for use with Norsat’s C-Band LNBs
• Environmentally sealed and moisture resistant
SPECIFICATIONS -
Frequency Range 3.70 to 4.20 GHz
VSWR 1.4: 1 max.
Insertion Loss in Band 0.5 dB max.
Rejection -
25 dB min at 3.650 GHz and 4.250 GHz
60 dB min at 3.550 GHz and 4.350 GHz
70 dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz 0.6 sec
