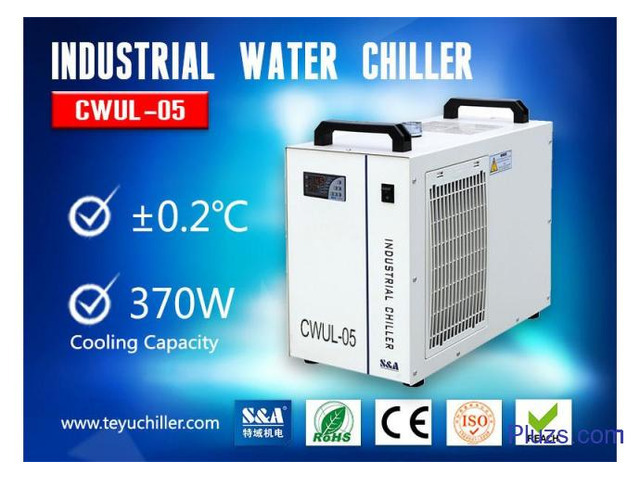

High precision small portable chiller CWUL-05 has the temperature stability of ±0.2℃ and it is specially designed for cooling 3W-5W UV laser of UV laser marking machine. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based chiller unit manufacturer with 16-year experience.
With temperature stability of ±0.2℃, the water temperature fluctuation of closed loop industrial chiller CWUL-05 is pretty small, which can...
Water Chiller Manufacturer
16 Years Experience
Wholesale water chiller, stable refrigeration performance ,ISO, CE,RoSH,REACH approval
https://www.teyuchiller.com/high-precision-uv-laser-water-chillers-cwul-05-with-long-life-cycle_p18.html
High precision small portable chiller CWUL-05 has the temperature stability of ±0.2℃ and it is specially designed for cooling 3W-5W UV laser of UV laser marking machine. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A), a professional China-based chiller unit manufacturer with 16-year experience.
With temperature stability of ±0.2℃, the water temperature fluctuation of closed loop industrial chiller CWUL-05 is pretty small, which can help maintain stable laser output of UV laser.
High precision small portable chiller CWUL-05 is charged with refrigerant R-134a and it produces little noise when it is working, so it is an environmental friendly chiller. Besides, high precision small portable chiller CWUL-05 is equipped with intelligent temperature controller which offer two temperature control modes as constant & intelligent temperature control mode.
Under constant temperature mode, users can set a fixed value manually according to their own need. However, under intelligent temperature mode, the water temperature will adjust itself according to the change of the room temperature (usually the water temperature is a few degree celsius lower than the room temperature), which offers great convenience for the users.
For better cooling performance and prevent possible clogging, closed loop industrial chiller CWUL-05 is better added with purified water or clean distilled water. It is also suggested to clean the dust gauze and the condenser from time to time to reduce the potential of triggering high temperature alarm.
Specification:
Voltage:220V; Frequency: 50Hz; Refrigerant:R-410a
Pump power: 0.05KW; Tank capacity:6L
Max. lift:12M; Max. flow: 13L/min
N.W: 23Kgs; G.W: 26Kgs;
Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand

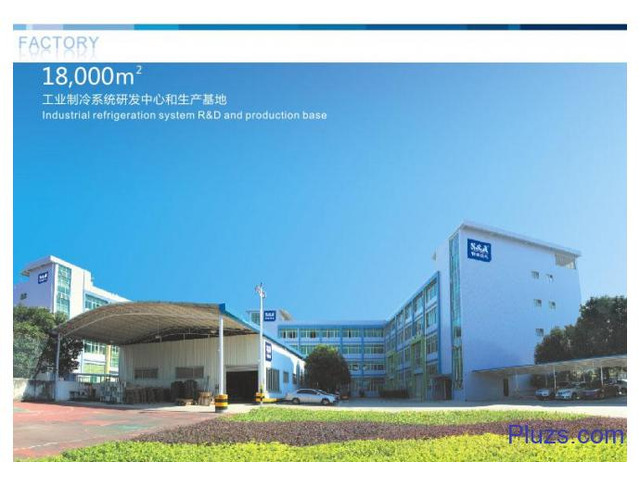

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates，ISO, CE, RoHS and REACH compliant; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1. Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%；
3. Standard bulk production, standard parts rate up to 80% ；
4. With excellent laboratory testing system, simulates actual working environment for chiller.
